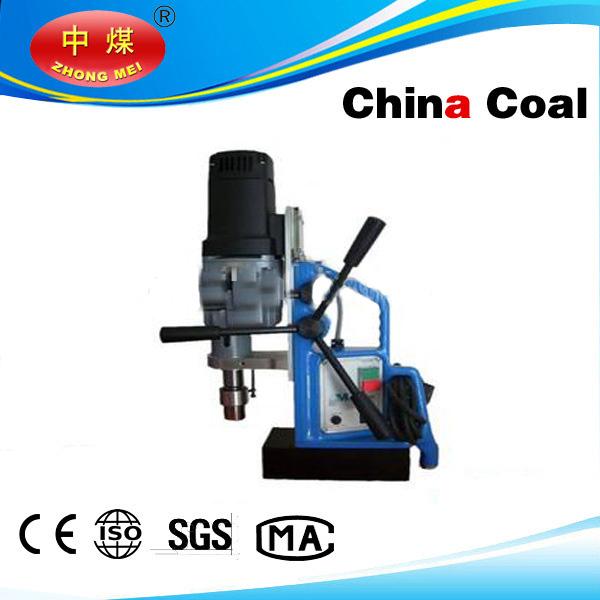

Magnetic Drill Press

Name: Magnetic Drill Press
Brand: china coal
Price: 1 USD

Place of Origin : China

Brand Name : china coal

Certification : MA, ISO9001, CE

Price : CONSULTATIVE

Packaging Details : STANDARD PACKING

Delivery Time : 7 days

Payment Terms : TT/LC/Western Union

Supply Ability : 5000/month

MOQ : 1 set

Contact Now

Product Introduction

Magnetic drills are a more efficient way to drill a hole through steel,

This light weight, portable machine is held in place by a strong magnetic base plate .so is capable of cutting very accurate holes into steel plate and castings. For boring, clean and accurate holes these broachers are ideal for industrial use.

Main Parameter

Model	J1C-BG01 32A	J1CK-BG01 38A	J1CK-BG01 49A	J1CK-BG02 25A	J1CK-BG02 32A	J3C-BG01 60A	J3C-BG04 32A	J3C-BG04 38A	J3C-BG05 49A
Max.Dia	Φ31.75mm	Φ38mm	Φ49mm	Φ25mm	Φ32mm	Φ60mm	Φ32mm	Φ38mm	Φ49mm
No-load speed	250r/min	330r/min	300r/min	500r/min	350r/min	95r/min	150r/min	115r/min	110r/min
Rated input power	1300W	1300W	1350W	1000W	1300W	2100W	1600W	1750W	1950W
Max.attraction	13500N	13500N	14000N	11000N	13000N	21000N	13500N	15000N	18500N
Max.travel	180mm	180mm	180mm	100mm	180mm	230mm	230mm	230mm	230mm
	Mouse 3	Weldon Φ19mm				Weldon Φ19mm Max.Drilling Depth 75mm	Mouse4 Move20mm Rotation72°
Rated Voltage	220V	220V	220V∼	220V	220V	380V	380V	380V	380V
Rated frequency	50Hz	50Hz	50Hz	50Hz	50Hz	50Hz	50Hz	50Hz	50Hz
Net weight	30Kg	28Kg	33Kg	9.5Kg	28Kg	47Kg	47Kg	47Kg	48Kg
